• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1932 ?

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 239440

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RES044 RE084 RE134

• Main principle
• TRF with regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast and LongWave in ONE range.

• Power type and voltage
• Dry Batteries / 4 & 90 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

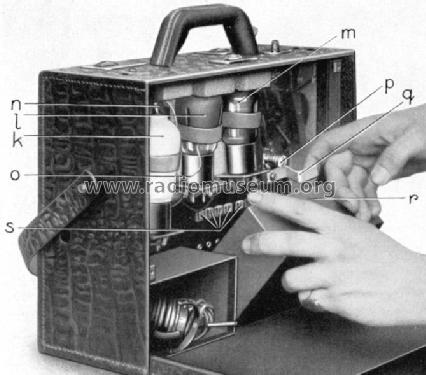

• Model: Störsuchgerät Rfss.21 - Siemens & Halske, -Schuckert

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 355 x 310 x 150 mm / 14 x 12.2 x 5.9 inch

• Notes

• Weiterentwicklung des Siemens Störsuchgerät Rfss12.



• Net weight (2.2 lb = 1 kg)
• 4.340 kg / 9 lb 9 oz (9.559 lb)

• Mentioned in
• Siemens Druckschrift SH4679 (Bedienungsanleitung)

• Literature/Schematics (1)
• GFGF-Themenheft 4, Störungssuchgeräte und ihre Geschichte

Siemens Störsuchgerät Rfss21

2073 KB

• Documents regarding this model

• Author
• Model page created by Hannu Alho. See "Data change" for further contributors.
