• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116984

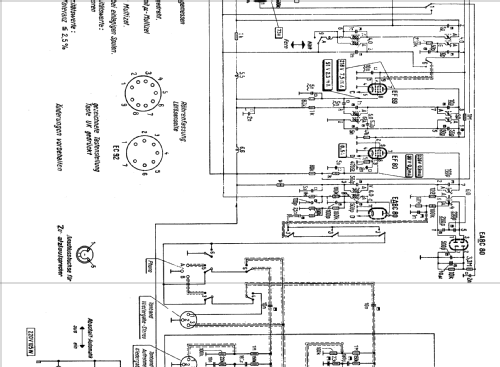

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• EC92 EC92 ECH81 EF89 EM80 EF80 EABC80 ECC83 ECC83 EL84 EL84

• Number of Transistors

• Semiconductors
• B250C125

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 250 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo-Musiktruhe STR14 - Siemens & Halske, -Schuckert

• Shape
• Console with Push Buttons.

• Notes

• Siemens STR14 und STR19 sind die ersten Musiktruhen mit Stereo-NF-Verstärker des Herstellers Siemens Electrogeräte.

  Phono-Chassis: Stereo-Plattenwechsler Dual 1004S für 16, 33, 45 und 78 U/min mit Stereo-Kristall-System CDS 320.

• Price in first year of sale
• 1,198.00 DM

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Pius Steiner. See "Data change" for further contributors.
