• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22338

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes

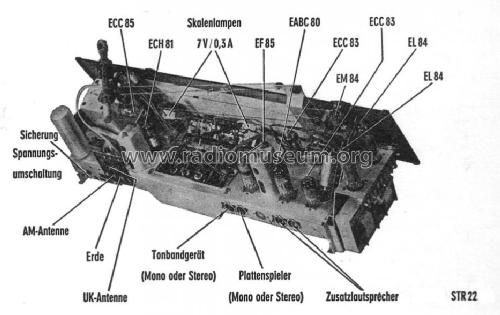

• ECC85 ECH81 EF85 EABC80 EM84 ECC83 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

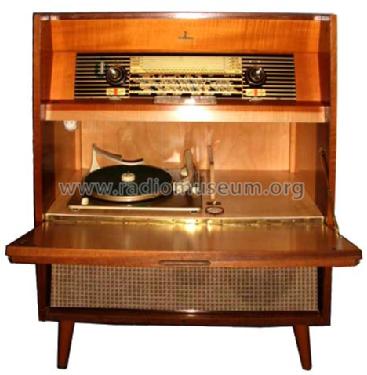

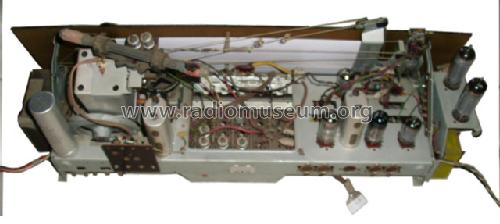

• Model: Stereo-Musiktruhe STR22 - Siemens & Halske, -Schuckert

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 700 x 890 x 385 mm / 27.6 x 35 x 15.2 inch

• Notes
• Mit Plattenwechsler Perpetuum Ebner Rex A 59.
  Zubehör: Extra Lautsprecherbox B22 mit 2 Lautsprechern in Gehäusefarbe wie die Truhe.
  Abmessung 46 x 69 x 30 cm, Gewicht 16 kg.

• Net weight (2.2 lb = 1 kg)
• 22 kg / 48 lb 7.3 oz (48.458 lb)

• Price in first year of sale
• 778.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60
