- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 225247

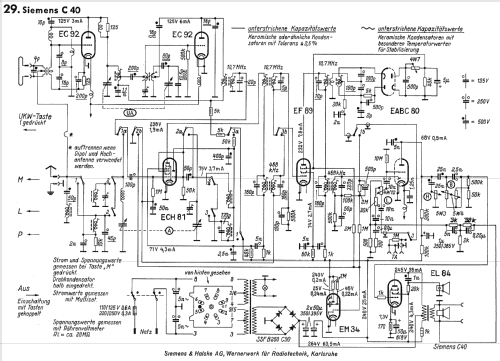

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 250 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super C40 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, with any shape - general.
- Notes
-
2 Lautsprecher: Tief-Mittelton und Hochtöner.
Type ohne Saffix.
Siehe auch Super C40L und
Siehe auch Super C40K
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
