Super G41

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19616

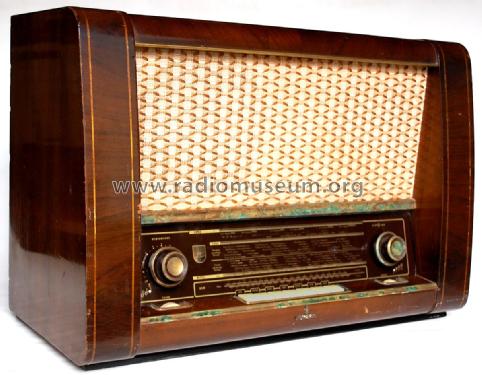

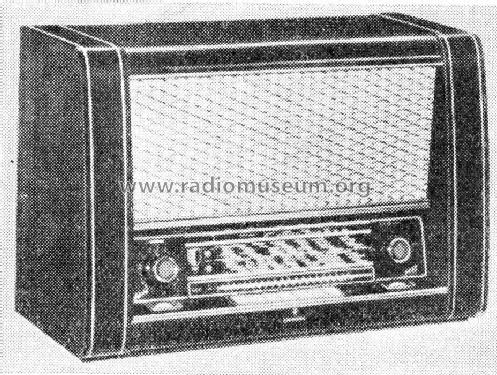

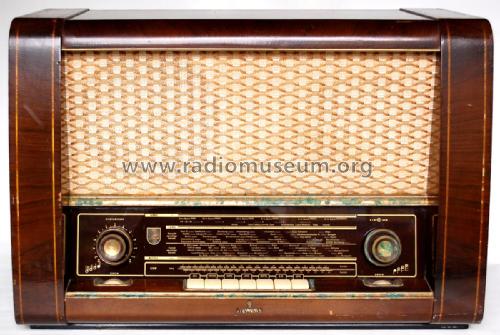

• Picture

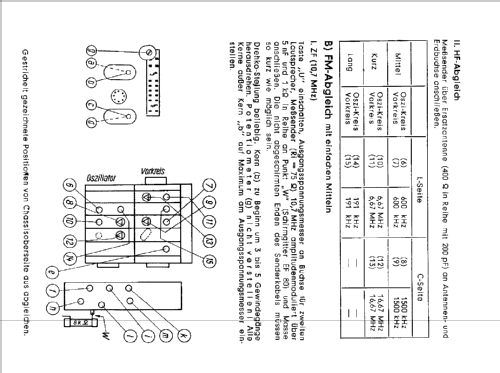

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF80 EC92 ECH81 EF89 EM80 EABC80 EL84

• Number of Transistors

• Semiconductors
• B250C90

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 220, 250 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super G41 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 580 x 400 x 270 mm / 22.8 x 15.7 x 10.6 inch

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 335.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55

• Literature/Schematics (1)
• Radio und Fernsehen (DDR) (11-1954, Seite 322)
