System RS806

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1985 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 145481

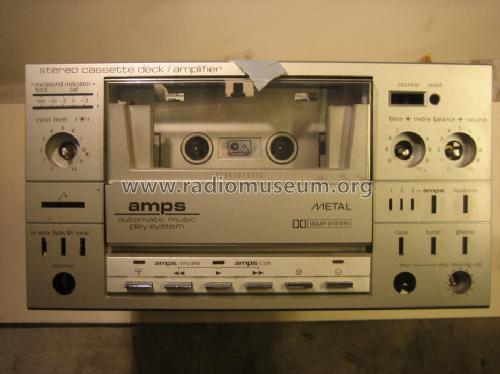

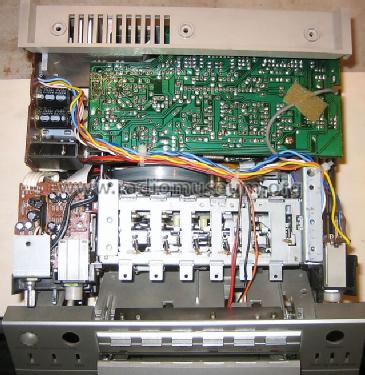

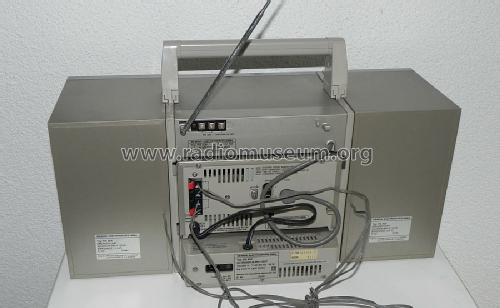

• Picture

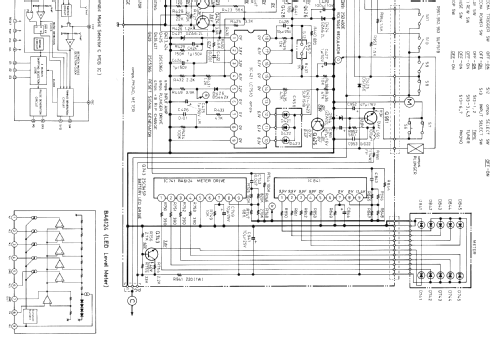

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 53

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 9 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 15 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: System RS806 - Siemens & Halske, -Schuckert

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 510 x 230 x 220 mm / 20.1 x 9.1 x 8.7 inch

• Notes
• 10 CI; Verstärker Ausgangsleistung (K3=10%; 1kHz): 2x7,5 Watt Sinus.

• Net weight (2.2 lb = 1 kg)
• 11.2 kg / 24 lb 10.7 oz (24.67 lb)

• Mentioned in
• Original Siemens Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
