- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21413
Siemens Prospekt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 8 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 250 Volt
- Loudspeaker
- 5 Loudspeakers
- Power out
- 7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

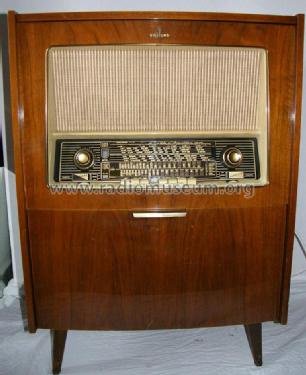

- Model: Musiktruhe TR1 - Siemens & Halske, -Schuckert
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 640 x 910 x 430 mm / 25.2 x 35.8 x 16.9 inch
- Notes
- Phono-Chassis = Dual 1004.
- Net weight (2.2 lb = 1 kg)
- 32.5 kg / 71 lb 9.4 oz (71.586 lb)
- Price in first year of sale
- 798.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1957/58
