• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5179

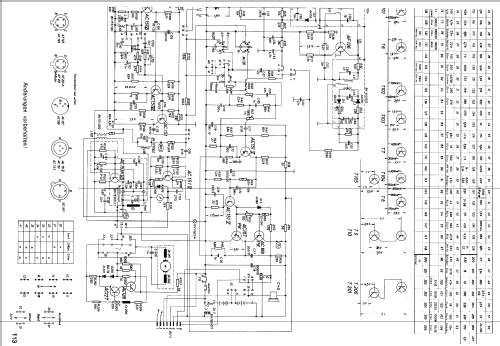

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors
• AF201 AF125 AF126 AF201 AF126 AF126 AC151 AC151 AC188 AC187 BC187 AC151 AC151 AC151 AC151 AC151 AC153 AC128 AC127

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

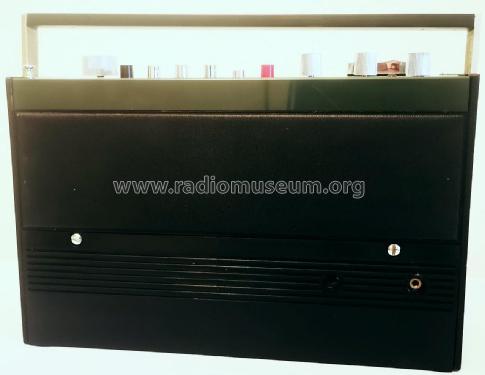

• Model: Trabant de Luxe RT91 - Siemens & Halske, -Schuckert

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 315 x 200 x 95 mm / 12.4 x 7.9 x 3.7 inch

• Notes
• Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie, dann Ausgangsleistung = 4 W; Netzbetrieb mit zusätzlichem Netzteil möglich.

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Source of data
• Handbuch VDRG 1967/1968 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Funk-Technik (FT) (12/1967, S. 429 / Beschreibung Cassettenteil, Schema)
