• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1973/1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29274

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / C: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

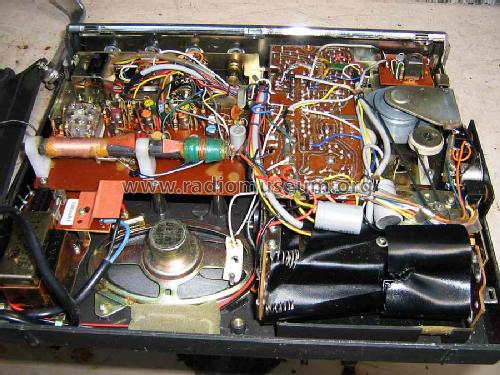

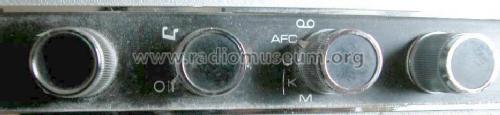

• Model: Trabant Special RT132 - Siemens & Halske, -Schuckert

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 286 x 63 x 233 mm / 11.3 x 2.5 x 9.2 inch

• Notes

• Wellenbereich:
  FM 87,4 - 104 MHz
  MW 510 - 1620 kHz
  SW 5,9 - 16,2 MHz.
  Anschlüsse: Tonbandgerät, Mikrofon, Kopfhörer, externe Lautsprecher.
  Oval-Lautsprecher, 60 x 100 mm.
  Instrument für Aussteuerungs- und Batteriespannungskontrolle. Externe Schalter Stromversorgung / Batterie.
  Im VDRG-Handbuch nur als "Trabant RT132" bezeichnet.


• Net weight (2.2 lb = 1 kg)
• 2.7 kg / 5 lb 15.2 oz (5.947 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1973

• Literature/Schematics (1)
• -- Original-techn. papers.
