• Country
• Italy

• Manufacturer / Brand
• Siemens Italia; Milano

• Year
• 1965 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 171217

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• PC900 PCF801 EF183 EF80 EF80 PCL84 PCH200 PCC85 PC92 PL500 PCL86 PY88 DY86 23DGP4

• Number of Transistors
• 3

• Semiconductors
• AF139 AF139 AF126

• Main principle
• Superheterodyne (common); ZF/IF 45750/40250 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: TV2356 - Siemens Italia; Milano

• Shape
• Tablemodel, low profile (big size).

• Notes
• Tuner VHF:
  Il sintonizzatore VHF è dotato di commutatore a 13 posizioni di qui 8 attive.
  Tuner UHF:

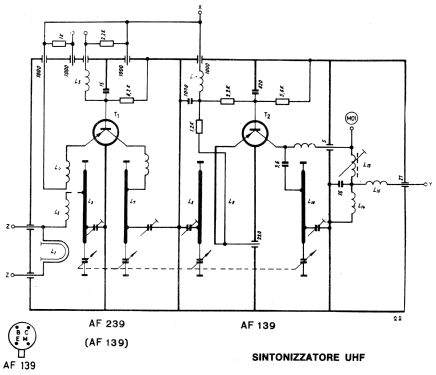

  Il sintonizzatore UHF è del tipo a sintonia continua, da 470 a 860 MHz.
  Sistema intercarrier.

• Literature/Schematics (1)
• -- Schematic (Schemario di Apparecchi Televisivi Vol. XXI R. Rosati)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.

• Other Models

• Here you find 214 models, 158 with images and 164 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Siemens Italia; Milano
