• Year
  • 1960 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 181998
    • alternative name: Siemens EAG; Schweiz

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Wooden case
  • from Radiomuseum.org

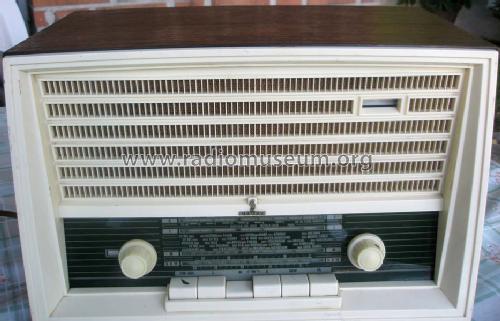

  • Model: Spezialsuper - Siemens
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 365 x 240 x 190 mm / 14.4 x 9.4 x 7.5 inch
  • Notes
  • Chassis wie Siemens Spezialsuper RB10, aber runder Lautsprecher. Spannungswahl durch Umstecken der Sicherung. Separate Sicherung für den Heizkreis.
  • Net weight (2.2 lb = 1 kg)
  • 4.8 kg / 10 lb 9.2 oz (10.573 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Bernardo Diaz. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Spezialsuper is part of the collections of the following members.

 Forum

Forum contributions about this model: Siemens: Spezialsuper

Threads: 1 | Posts: 5

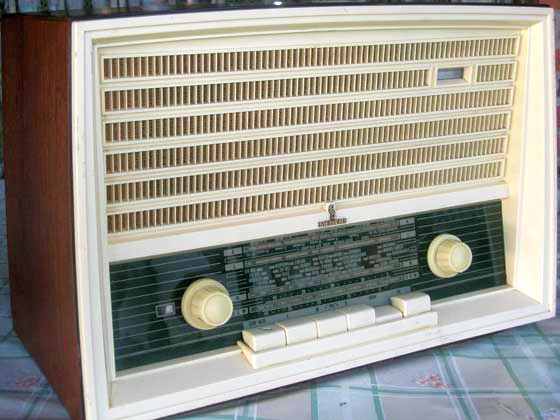

 Agradeceria si alguien me puede informar que modelo de radio Siemens es esta?

Muchas gracias


Bernardo Diaz, 10.Sep.10

Weitere Posts (5) zu diesem Thema.
