- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1945 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 159008
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite case
- from Radiomuseum.org

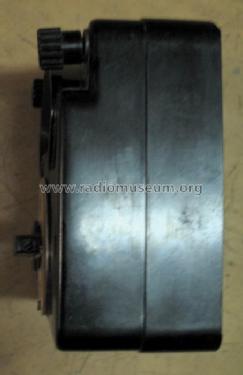

- Model: V/A-Meter - Siemens & Halske, -Schuckert
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 102 x 120 x 65 mm / 4 x 4.7 x 2.6 inch
- Notes

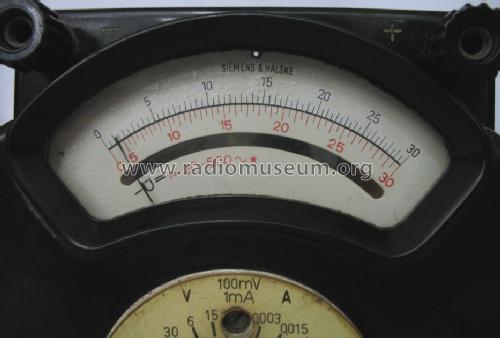

- DC:100 mV-600 V, 1 mA-6 A. AC: 15-600 V, 0,003-6 A. (Found 100 mV/1 mA).
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
