Variodyn-Vollverstärker V781d Best.Nr.C72392-A700-A111
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1980 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 253591

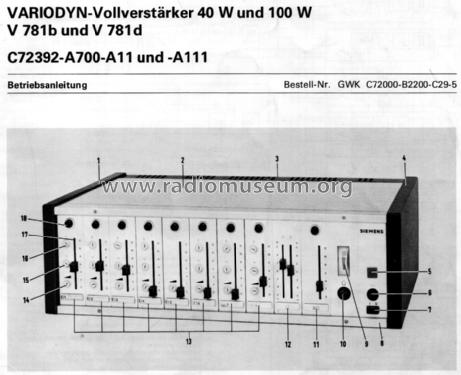

Titelbild Betriebsanleitung

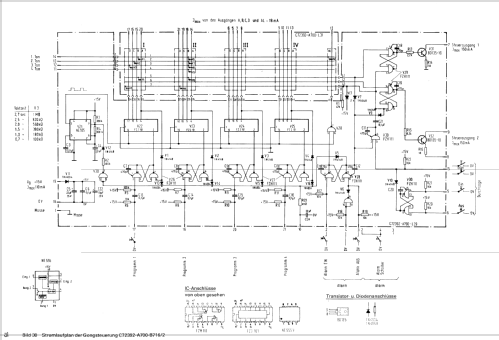

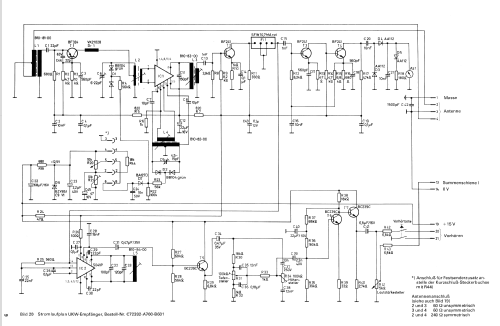

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110/220 + - 24 V DC Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 100 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Variodyn-Vollverstärker V781d Best.Nr.C72392-A700-A111 - Siemens & Halske, -Schuckert
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 453 x 153 x 260 mm / 17.8 x 6 x 10.2 inch
- Notes
-
ELA-Mischverstärker V781d.
50/100 Volt Ausgang,
8 mischbare Eingänge, individuell bestückbar,
Notstrombetrieb über + - 24V DC.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by a member from D. See "Data change" for further contributors.
