VHS-Videorecorder FM 732

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1994 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 249475

• Picture

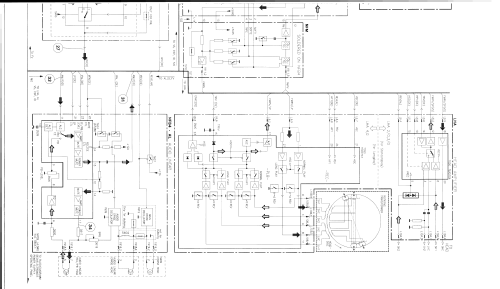

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Video-Taperecorder/-Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 180-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: VHS-Videorecorder FM 732 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Notes

• VHS-Videorecorder FM 732.
  VPS Steuerung.
  OSD Einblendung.
  LCD Fernsteuerung.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
