Videocord FM-488 HiFi-Stereo
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1986
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 229343
aus Original Prospekt

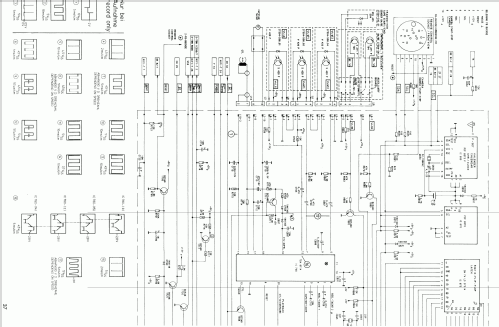

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Video-Taperecorder/-Player; Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: Videocord FM-488 HiFi-Stereo - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 105 x 311 mm / 16.5 x 4.1 x 12.2 inch
- Notes
-
Siemens Videocord FM-488 HiFi-Stereo,
Video-Format: VHS-Standard, VPS-Decoder, HiFi-Stereo, Kanal-Direktwahl (PLL-Technik), ATTS-Kassettenkennung und Anzeige der Bandrest-Laufzeit, automatische Ton-Aussteuerung, Bildsuchlauf, Assemble-Schnitt, Zeitraffer, Standbild/Einzelbild, Zeitlupe, Euro-AV-Buchse, UHF/VHF.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Source of data
- -- Original prospect or advert
