• Country
• Türkiye

• Manufacturer / Brand
• Siera Radyo Cihazları; (where?)

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 300491

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UBF80 UCL82 UY85

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 90; 110; 127; 190; 220; 245 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

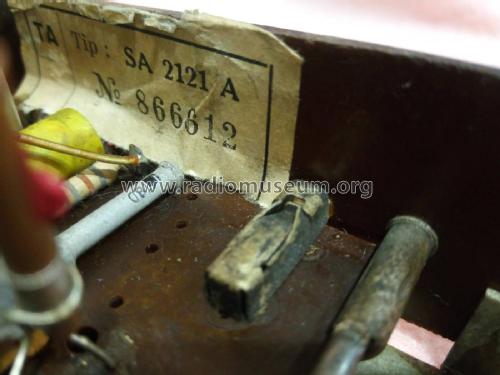

• Model: 3 Band-Plano SA2121A - Siera Radyo Cihazları; where?

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 410 x 170 x 150 mm / 16.1 x 6.7 x 5.9 inch

• Notes

• 3 wavebands: UD (LW), OD (MW), KD (SW).

  See also similar model Philips B3X40U.

• Net weight (2.2 lb = 1 kg)
• 3.680 kg / 8 lb 1.7 oz (8.106 lb)

• Author
• Model page created by Ekrem Cengiz Bilgin. See "Data change" for further contributors.
