• Country
• Belgium

• Manufacturer / Brand
• Siera; Belgien

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117921

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA79 OA85

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

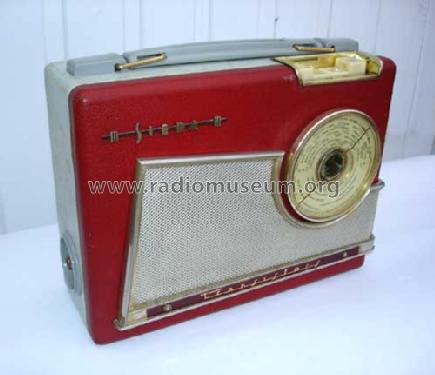

• Model: 6011T - Siera; Belgien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 180 x 90 mm / 9.8 x 7.1 x 3.5 inch

• Notes
• .

• Price in first year of sale
• 3,150.00 BFr

• Source of data
• - - Data from my own collection

• Author
• Model page created by Jean-Paul Moriamé. See "Data change" for further contributors.
