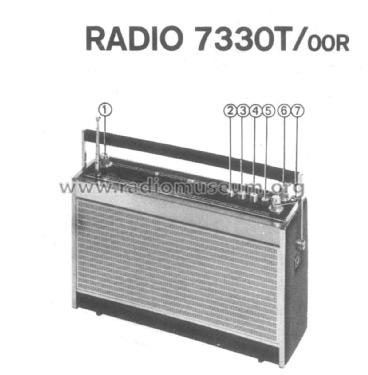

7330T /00R

Siera; Belgien

  • Year
  • 1970 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 353576

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.75 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: 7330T /00R - Siera; Belgien
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 335 x 195 x 95 mm / 13.2 x 7.7 x 3.7 inch

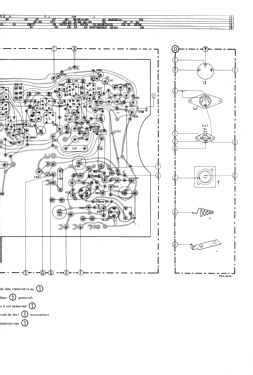

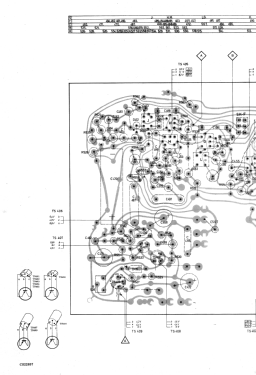

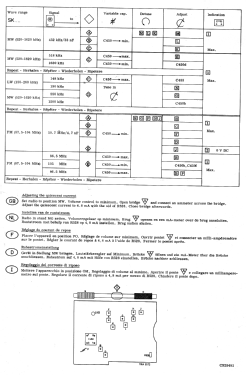

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Hugo Sneyers. See "Data change" for further contributors.
