Radio SA 5811 /00 /22 /16 /70 /76

Siera; Belgien

Data
Forum
Pictures
Collections

  • Year
  • 1972 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 359626

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 40
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz
  • Tuned circuits
  • 5 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 13 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org

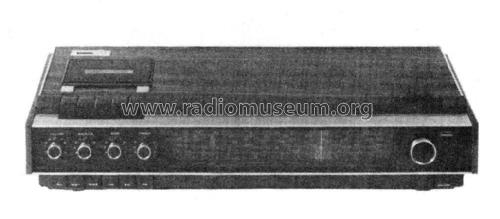

  • Model: Radio SA 5811 /00 /22 /16 /70 /76 - Siera; Belgien
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 528 x 115 x 240 mm / 20.8 x 4.5 x 9.4 inch
  • Notes

  • Transistors and diodes are only listed one per type

    Alternative AM IF: 460 or 470 kHz (relation of IF to the model version number not clear yet). AM-IF with additional piezo filter.

    See also Philips SA5811 /72z

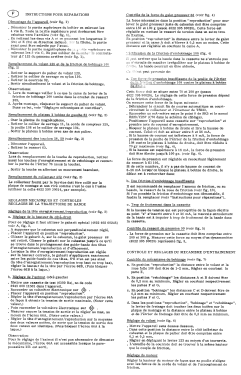

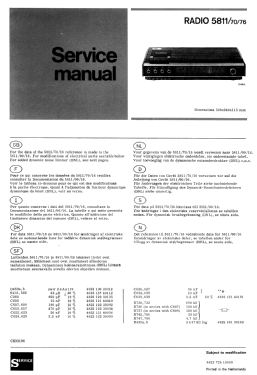

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Hugo Sneyers. See "Data change" for further contributors.
