S253A-01
Siera; Belgien
- Country
- Belgium
- Manufacturer / Brand
- Siera; Belgien
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 99071

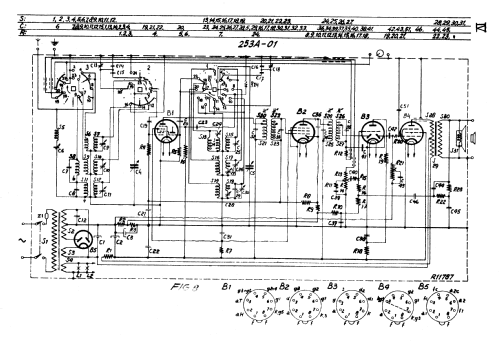

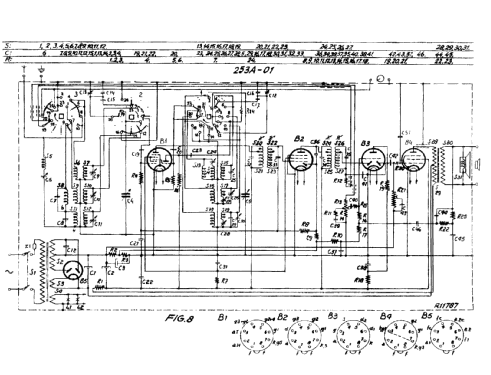

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

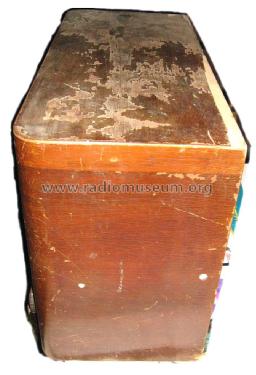

- Material
- Wooden case
- from Radiomuseum.org
- Model: S253A-01 - Siera; Belgien

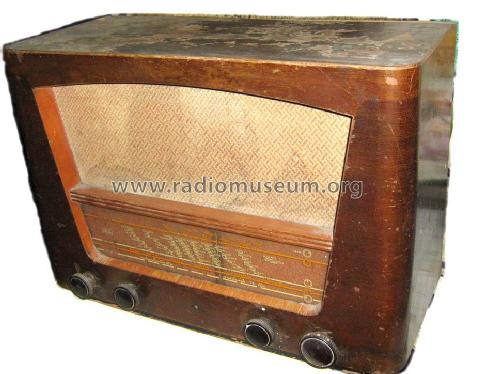

- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 440 x 320 x 195 mm / 17.3 x 12.6 x 7.7 inch
- Notes
- Loudspeaker Philips 9738X.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by John Koster. See "Data change" for further contributors.
- Other Models
-
Here you find 456 models, 414 with images and 188 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Siera; Belgien
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Siera; Belgien: S253A-01
Threads: 1 | Posts: 7
Guten Abend!..
Wer kann mir helfen bei identifizierung der obengenannte Radio?
Baujahr: 1950..51
Röhrenbestückung: ECH41, EAF42, EBC41, EL41, AZ41.
Attachments

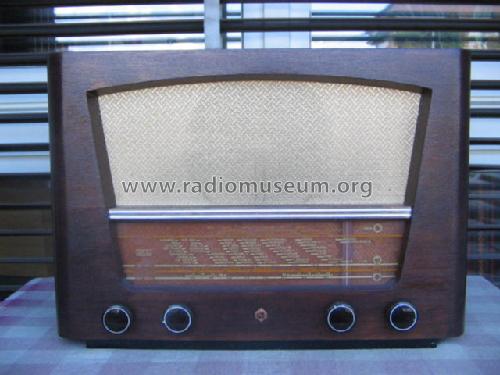

- Siera_vorne (32 KB)

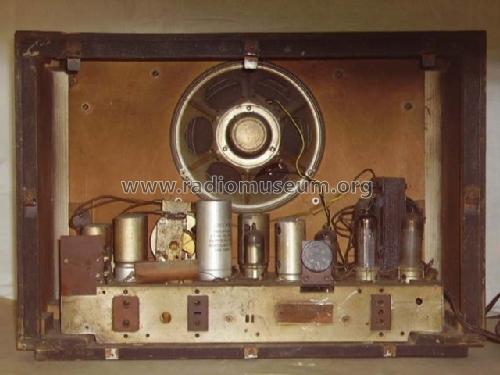

- Siera_Hinten (30 KB)
Peter Kovacs, 18.Aug.10
