SS35U
Siera; Belgien
- Country
- Belgium
- Manufacturer / Brand
- Siera; Belgien
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 98643

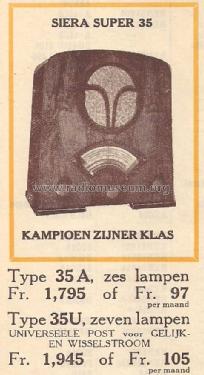

Bild aus Siera-Vademecum.
private collection
- Number of Tubes
- 6
- Conflicting model year with tube data.
- The model date contradicts tube dates. [ CF7 (1935)]
- Main principle
- Superheterodyne (common); ZF/IF 104 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 110-120; 120-130; 200-225; 225-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: SS35U - Siera; Belgien
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 350 x 385 x 210 mm / 13.8 x 15.2 x 8.3 inch
- Notes
-
2 Band reception:
- LW: 760 - 1900 m.
- BC: 200 - 550 m.
Tuning scale light bulbs type: 2 x 8066 (9V, 240mA).Loudspeaker Philips type 4281. Connectors for second loudspeaker and for pick-up.S35U has a varnished walnut and marquetry cabinet.The model with CF7 instead of SP13 appeared only in 1935. The booklet "Siera memento of tubes and models 1932-1946" doesn't mention the C1 current reglator.This model is identical to Ténor T35U and comparable with Philips 521U (schematic only).
Attention: chassis connected to the mains !
- Net weight (2.2 lb = 1 kg)
- 0.2 kg / 0 lb 7 oz (0.441 lb)
- Price in first year of sale
- 1,945.00 BEF
- Source of data
- -- Original prospect or advert
- Mentioned in
- - - Manufacturers Literature (Siera memento of tubes and models 1932-1946)
- Author
- Model page created by John Koster. See "Data change" for further contributors.
