S 267A

Siera; Belgien

Data
Forum
Pictures
Collections

  • Year
  • 1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 262699

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s); Export model
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 90; 110; 125; 145; 200; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
  • Material
  • Bakelite case
  • from Radiomuseum.org

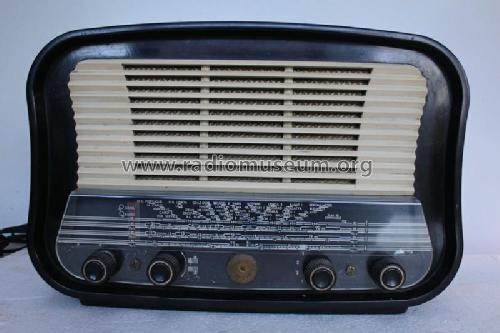

  • Model: S 267A - Siera; Belgien
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 420 x 260 x 180 mm / 16.5 x 10.2 x 7.1 inch
  • Notes

  • 3 Short Waves bands:

    • SW1  31 - 90 m
    • SW2  11 - 19 m
    • SW3  25 - 32 m

    Dial lamp: 8045D (6,3V/0,32A).

    Export model.







  • Net weight (2.2 lb = 1 kg)
  • 6.6 kg / 14 lb 8.6 oz (14.537 lb)
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
