• Country
• Türkiye

• Manufacturer / Brand
• Siera Radyo Cihazları; (where?)

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 300228

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UF89 UBC81 UL84 UY42

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Bakelite case

• from Radiomuseum.org

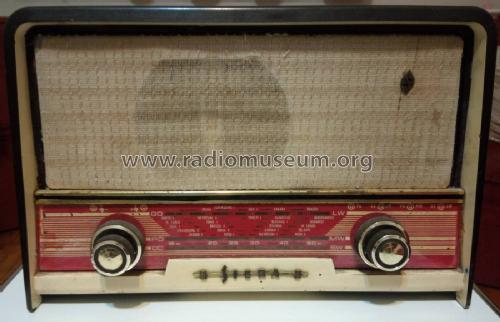

• Model: SA1033U - Siera Radyo Cihazları; where?

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 313 x 203 x 164 mm / 12.3 x 8 x 6.5 inch

• Net weight (2.2 lb = 1 kg)
• 2.835 kg / 6 lb 3.9 oz (6.244 lb)

• Author
• Model page created by Ekrem Cengiz Bilgin. See "Data change" for further contributors.
