SA3029A

• Country
• Belgium

• Manufacturer / Brand
• Siera; Belgien

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 109303

• Picture

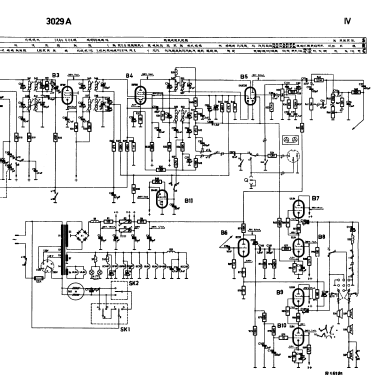

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes

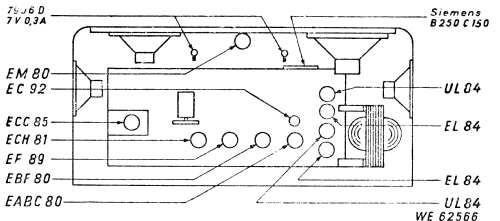

• ECC85 ECH81 EF89 EBF80 EM80 EABC80 EC92 EL84 EL84 UL84 UL84

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: SA3029A - Siera; Belgien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 28 x 18 x 11 inch / 711 x 457 x 279 mm

• Notes
• Siehe auch Philips Capella BD753A/4E/3D.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
