• Country
• Belgium

• Manufacturer / Brand
• Siera; Belgien

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 95336

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

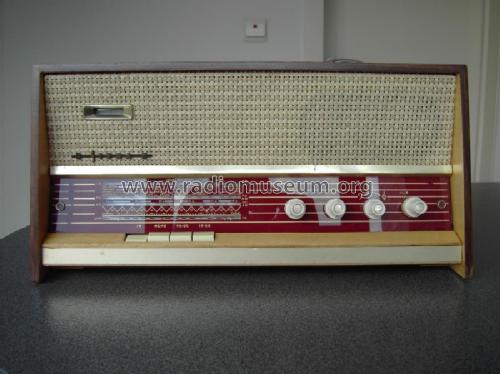

• Model: SA3107A - Siera; Belgien

• Dimensions (WHD)
• 440 x 210 x 200 mm / 17.3 x 8.3 x 7.9 inch

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from B. See "Data change" for further contributors.

• Other Models

• Here you find 472 models, 431 with images and 208 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
