SA3217A

• Country
• Belgium

• Manufacturer / Brand
• Siera; Belgien

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 208739

• Picture

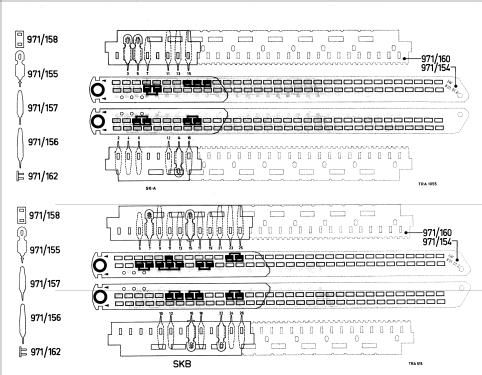

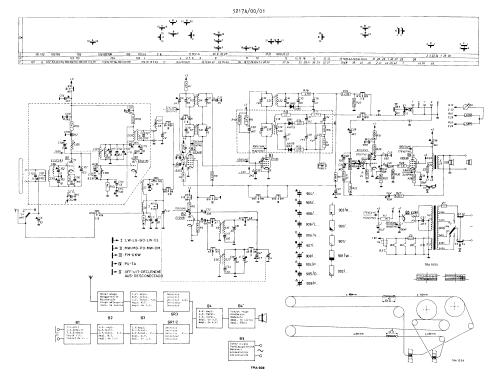

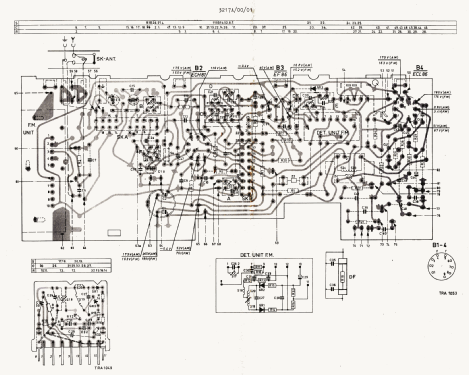

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EF85 ECL86 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 111; 127; 145; 165; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: SA3217A - Siera; Belgien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 428 x 205 x 230 mm / 16.9 x 8.1 x 9.1 inch

• Source of data
• - - Data from my own collection

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.

• Other Models

• Here you find 456 models, 414 with images and 188 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
