SA4136A
Siera; Belgien
- Country
- Belgium
- Manufacturer / Brand
- Siera; Belgien
- Year
- 1959 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 81865
Eigenes Gerät nach Restaurierung.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle

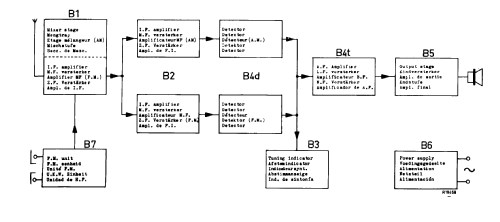

- Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 145; 220 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 9 cm = 3.5 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: SA4136A - Siera; Belgien
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 495 x 280 x 210 mm / 19.5 x 11 x 8.3 inch
- Notes
-
A useable schematic can be found with model B4X82A from Philips.
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
