SA5211A /05
Siera; Belgien
- Country
- Belgium
- Manufacturer / Brand
- Siera; Belgien
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 291538
Ich arbeite gerade an diesem Radio
Ich arbeite gerade an diesem Radio
Ich arbeite gerade an diesem Radio
Ich arbeite gerade an diesem Radio
Ich arbeite gerade an diesem Radio
Ich arbeite gerade an diesem Radio
Ich arbeite gerade an diesem Radio
Ich arbeite gerade an diesem Radio
Ich arbeite gerade an diesem Radio
- Number of Tubes
- 10
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Wave bands

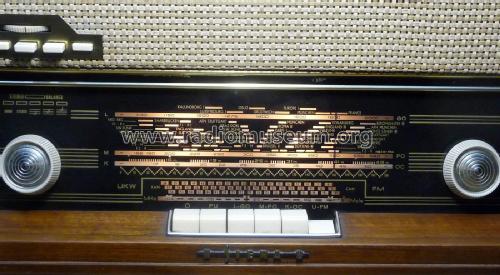

- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 15 cm = 5.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: SA5211A /05 - Siera; Belgien
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 570 x 280 x 240 mm / 22.4 x 11 x 9.4 inch
- Notes
-

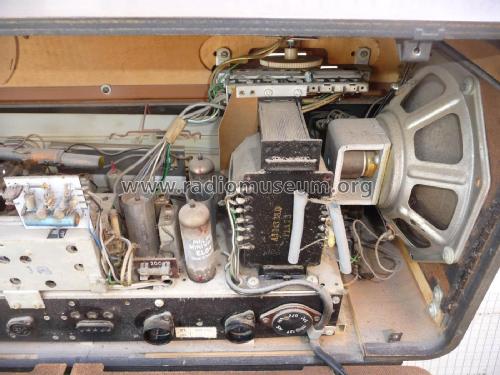

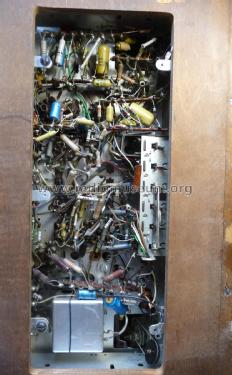

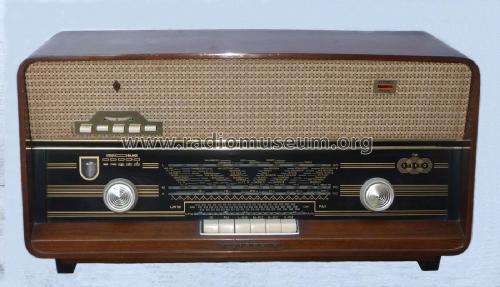

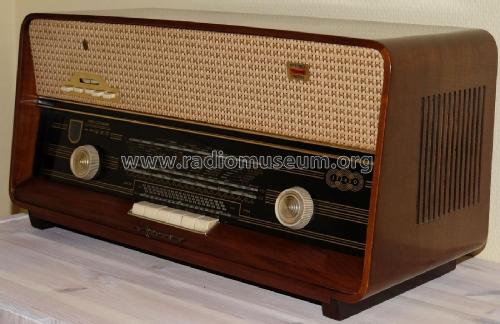

Siera SA5211A/05 is an AC operated 4-band LW/MW/SW/FM table top radio receiver.
Prepared for or already equipped with a MPX (Stereo) decoder.The SA5211A /05 has 2 loudspeakers AD3700 (15cm).
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
