SA6081T
Siera; Belgien
- Country
- Belgium
- Manufacturer / Brand
- Siera; Belgien
- Year
- 1958–1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 112667

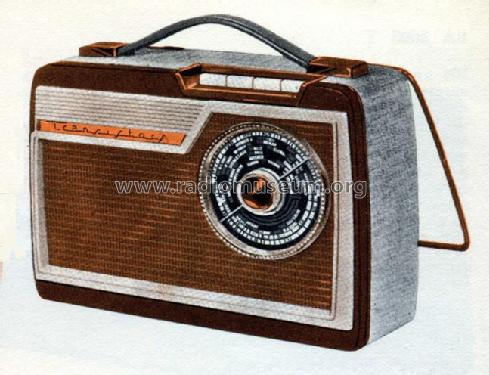

From a Portuguese Prospect

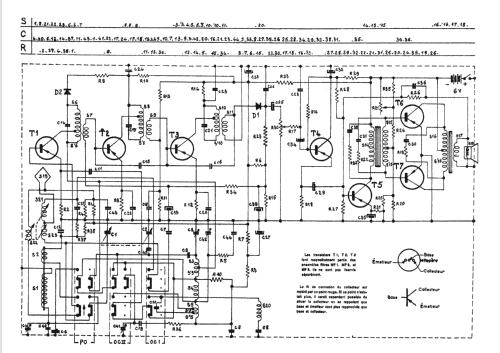

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt

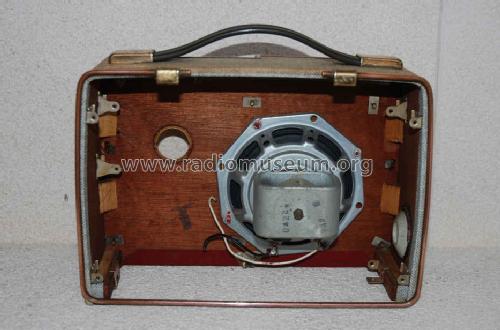

- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Power out
- 0.4 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: SA6081T - Siera; Belgien
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 260 x 185 x 100 mm / 10.2 x 7.3 x 3.9 inch
- Notes
-
3 wavebands: MW 185 to 572 m, SW2 95 to 47 m, SW1 42 to 19 m. Ferrite antenna.
Equivalent to Médiator MD6581T (/00, /00-M) and Radiola RA318T.
Sold in Portugal.
- Price in first year of sale
- 2,495.00 PTE
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Mario Coelho. See "Data change" for further contributors.
