• Country
• Belgium

• Manufacturer / Brand
• Siera; Belgien

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118892

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 452/6750 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

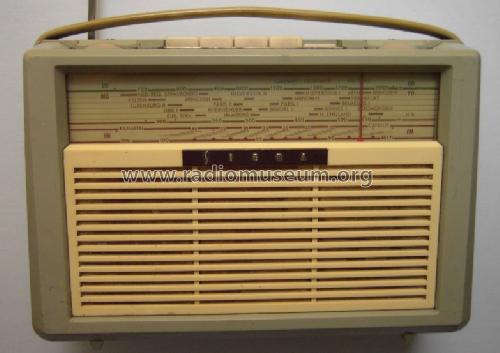

• Model: SA6140T/00 - Siera; Belgien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 185 x 90 mm / 10.4 x 7.3 x 3.5 inch

• Notes
• Transistors: 2× OC171, 2× OC170, 2× OC75, 2× OC74.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Oswald Bettendorf. See "Data change" for further contributors.

• Other Models

• Here you find 453 models, 414 with images and 181 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
