• Country
• Belgium

• Manufacturer / Brand
• Siera; Belgien

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81783

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

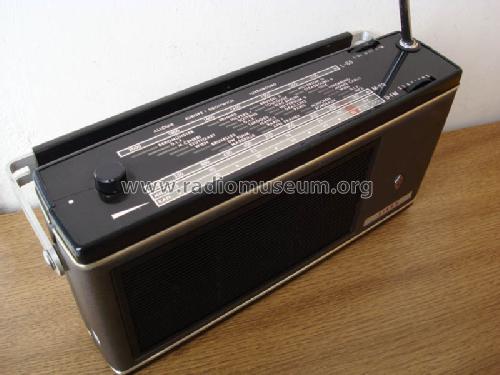

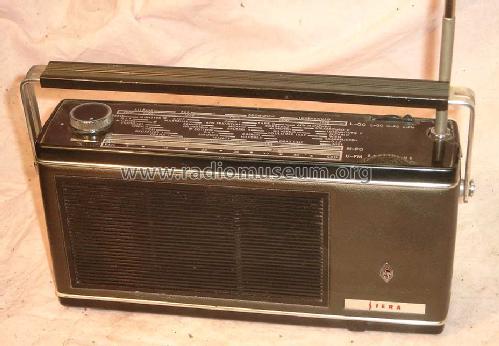

• Model: SA7210T - Siera; Belgien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 140 x 65 mm / 11 x 5.5 x 2.6 inch

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Price in first year of sale
• 3,150.00 BFr

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
