SA3259A /00 /00M
Siera; Belgien
- Country
- Belgium
- Manufacturer / Brand
- Siera; Belgien
- Year
- 1961 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 169889

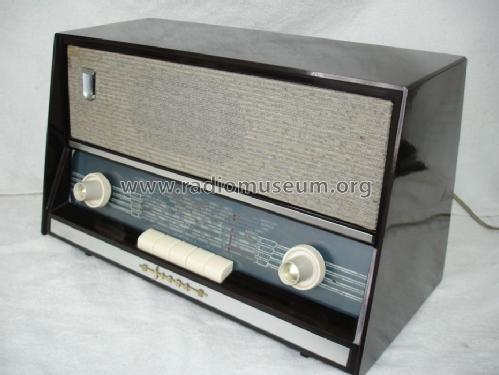

Front View
Front/Right View

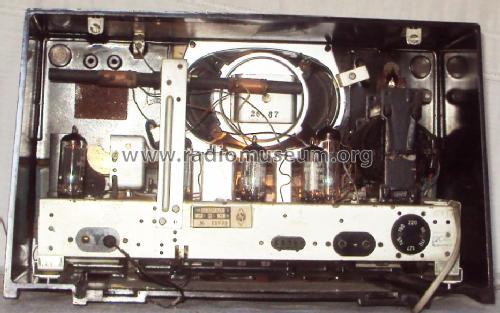

Back view
Inside view

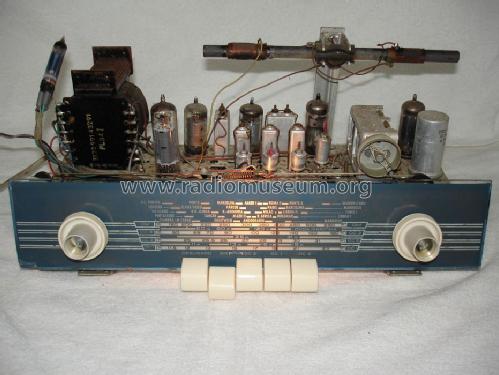

Chassis front view
Chassis bottom view

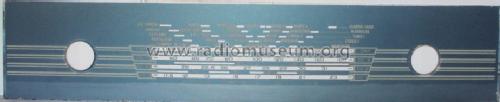

Dial scale in Portuguese language

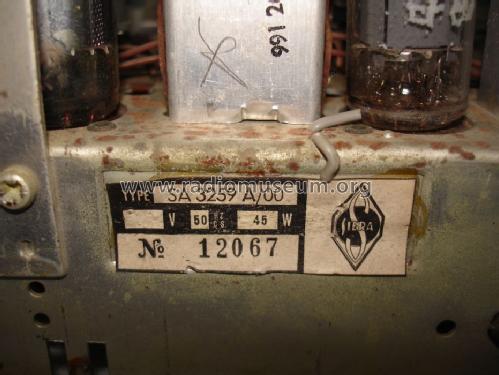

Label
B_Siera_SA-3259A/00_front.jpg
B_Siera_SA-3259A/00_back.jpg
350x70m/m.Entre furos 240m/m
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 90; 110; 127; 145; 190; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 4 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: SA3259A /00 /00M - Siera; Belgien
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 355 x 225 x 190 mm / 14 x 8.9 x 7.5 inch
- Notes
-
Dial-scale in Portuguese language. One dial lamp, refª 8024D (6V/0,3A).
Chassis similar to: Mediator MD3755A /35, MD4550A /00 and Philips B3X16A.
- Net weight (2.2 lb = 1 kg)
- 5.2 kg / 11 lb 7.3 oz (11.454 lb)
- Author
- Model page created by Carlos Alves. See "Data change" for further contributors.
