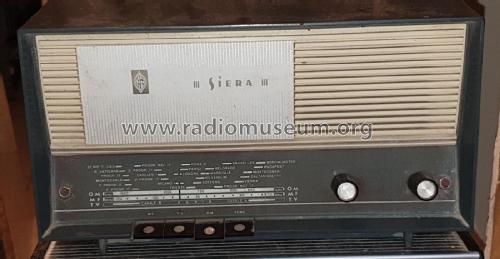

SI2020A
Siera; (where?)
- Country
- Italy
- Manufacturer / Brand
- Siera; (where?)
- Year
- 1961 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 326376
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: SI2020A - Siera; where?
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 310 x 170 x 165 mm / 12.2 x 6.7 x 6.5 inch
- Notes
-
Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.
Vedi anche Philips B2I10A
- Author
- Model page created by Pierpaolo Di Martino. See "Data change" for further contributors.
