• Country
• Norway

• Manufacturer / Brand
• Siera, Teknitron A/S; Oslo

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 239624

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF80 EBC41 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

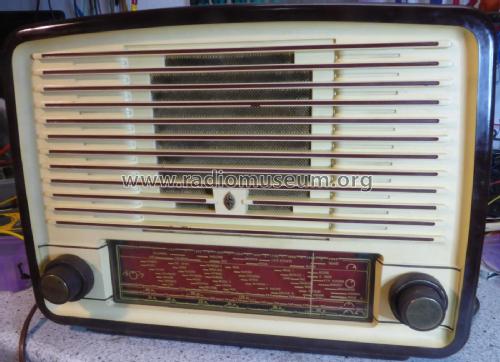

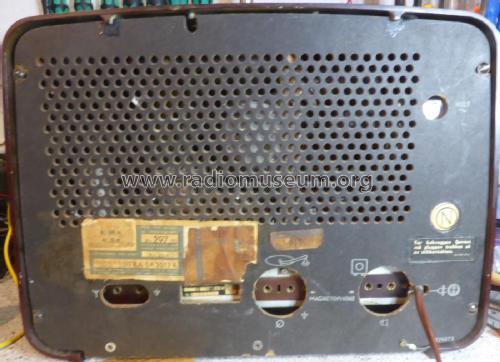

• Model: Siera Favoritt SA2012A - Siera, Teknitron A/S; Oslo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 370 x 270 x 180 mm / 14.6 x 10.6 x 7.1 inch

• Notes

• Chassis identical to Philips BX330A.

  Made in Belgium.

• Price in first year of sale
• 297.00 NOK

• Mentioned in
• Radiohandleren, Nr. 10, Dec. 1954; Nr. 8, Oct. 1954

• Other Models

• Here you find 17 models, 11 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
