• Country
• Belgium

• Manufacturer / Brand
• Siera; Belgien

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 356689

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EBF80 EF85 EM34 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Tafel-fonoradio SA8022A - Siera; Belgien

• Shape
• Tablemodel, with any shape - general.

• Notes

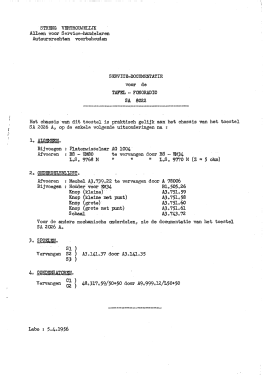

• Chassis rather similar to SA2026A, major difference is EM34 instead of EM80 (see Service Notes).

• Literature/Schematics (2)
• - - Manufacturers Literature

• Author
• Model page created by Pascal Ribbens. See "Data change" for further contributors.

• Other Models

• Here you find 472 models, 431 with images and 208 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
