Antenna con Base Magnetica K2 Minox
Sigma Antenne; Verona
- Country
- Italy
- Manufacturer / Brand
- Sigma Antenne; Verona
- Year
- 2000 ??
- Category
- Antenna (Aerial) or Coupler
- Radiomuseum.org ID
- 339465
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org

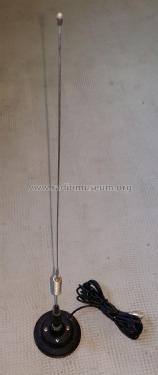

- Model: Antenna con Base Magnetica K2 Minox - Sigma Antenne; Verona
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 120 x 800 x 120 mm / 4.7 x 31.5 x 4.7 inch
- Notes
-
Antenna per la banda CB, 27 MHz. La base è costituita da un potente magnete così da poter essere installata sul tettuccio di una autovettura o di qualsiasi mezzo dotato di un piano in acciaio, che, se sufficientemente largo può costituire un buon piano di terra.
Stilo in acciaio di lunghezza 620 mm, con bobina di carica a 1/4 circa dalla base.
Fornita con 5 metri di cavo RG-58U e spinotto PL259 maschio.
- Net weight (2.2 lb = 1 kg)
- 1.440 kg / 3 lb 2.7 oz (3.172 lb)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
