1929 Laboratory Receiver
Silver - Marshall; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Silver - Marshall; Chicago, IL
- Year
- 1928/1929
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 266333

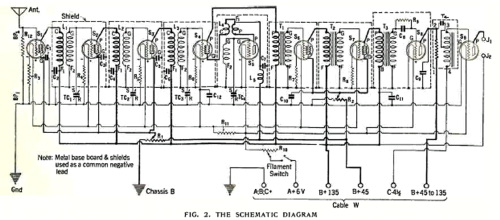

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 65 kHz; 1 AF stage(s); Screengrid 1926-1935
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 6 & 135 & 45 & -4.5 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: 1929 Laboratory Receiver - Silver - Marshall; Chicago, IL
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 557 x 188 x 285 mm / 21.9 x 7.4 x 11.2 inch
- Notes
-
Silver-Marshall 1929 Laboratory Receiver. This radio was not officially sold even as a kit, due to patent licensing, but as a collection of parts.
The SM-210 I.F. transformers, which are usually considered as broad-band transformers were found to tune quite sharply to 65 kHz when fed from screen grid valves.
- Mentioned in
- Radio Manufacturers of the 1920's, Vol. 3
- Literature/Schematics (1)
- "Radio Broadcast" magazine, Oct. 1928 P334
- Literature/Schematics (2)
- August 1928 Silver-Marshall General Catalog
- Literature/Schematics (3)
- Australian HRSA Radio Waves, April 1999, Pages 38 to 40
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
