• Country
• United States of America (USA)

• Manufacturer / Brand
• Silver - Marshall; Chicago, IL

• Year
• 1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18923

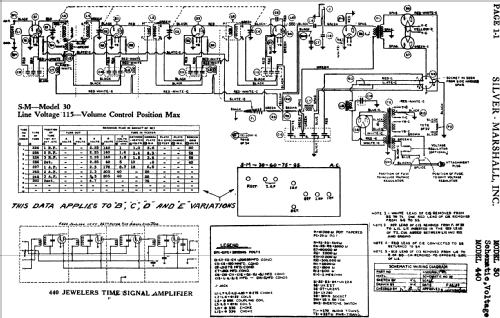

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 24 24 24 24 27 45 45 80

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935

• Tuned circuits
• 4 AM circuit(s)

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: 30 - Silver - Marshall; Chicago, IL

• Notes

• Push-pull audio frequency output stage.

  Phono input.

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Literature/Schematics (1)
• Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931)

• Literature/Schematics (2)
• -- Schematic (La Riparazione degli Apparecchi Radio Delforno-Colciago - Lavagnolo - Italy - 1941)

• Other Models

• Here you find 225 models, 116 with images and 122 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Silver - Marshall; Chicago, IL
