- Country
- United States of America (USA)
- Manufacturer / Brand
- Silver - Marshall; Chicago, IL
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 215125
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4.5 inch = 11.4 cm
- Material
- Wooden case
- from Radiomuseum.org

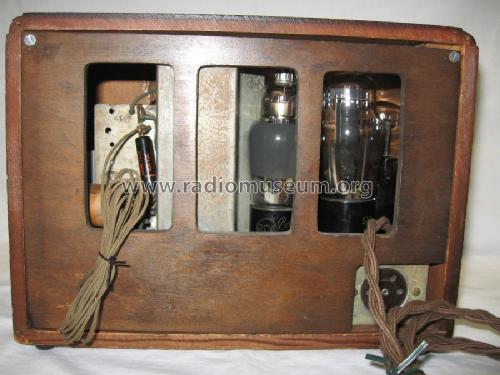

- Model: 45 - Silver - Marshall; Chicago, IL
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10 x 7.25 x 6 inch / 254 x 184 x 152 mm
- Notes
-
There are three models that use the same chassis. The Imperial 4-Tube Receiver and Silver-Marshall 45 are identical except for the front name plate. The Lafayette Trutest C-35 has a slightly different case.
Brand Model Imperial 4-Tube Receiver Silver-Marshall 45 Trutest C-35
- Net weight (2.2 lb = 1 kg)
- 6 lb 8 oz (6.5 lb) / 2.951 kg
- Other Models
-
Here you find 225 models, 116 with images and 122 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Silver - Marshall; Chicago, IL
