FM 2-Band AM 2F175

Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya

Data
Forum
Pictures
Collections

  • Year
  • 1968 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 354855
    • alternative name: Shin-Shirasuna Electric Corp. || Shirasuna Denki Mfg. Co. Ltd. || Shirasuna (Shin) Electric Corp.
    • Brand: Plata (brand)

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / AA: 4 x 1.5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM 2-Band AM 2F175 - Silver Brand - Shin-Shirasuna
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 182 x 100 x 44 mm / 7.2 x 3.9 x 1.7 inch
  • Notes

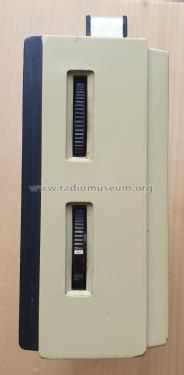

  • On right side, wheels for on/off - volume and tuning.

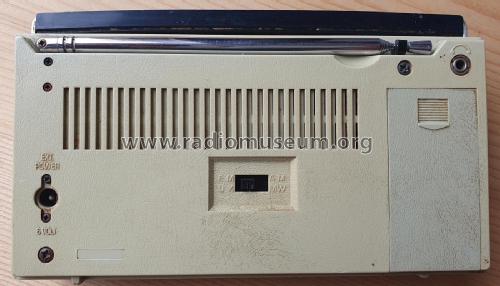

    Rear: socket for external 6 volt power supply, socket for earphones, FM – AM selector, access to the battery compartment.

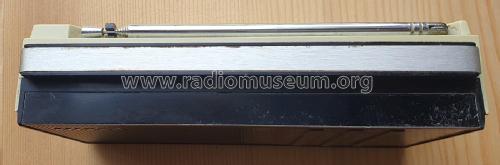

    On the upper side, 7-section telescopic antenna, 69 cm, non-rotatable; rigid and retractable handle.

  • Net weight (2.2 lb = 1 kg)
  • 0.460 kg / 1 lb 0.2 oz (1.013 lb)
  • Author
  • Model page created by Felice Nicolini. See "Data change" for further contributors.
