- Country
- United States of America (USA)
- Manufacturer / Brand
- Silver - Marshall; Chicago, IL
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57982

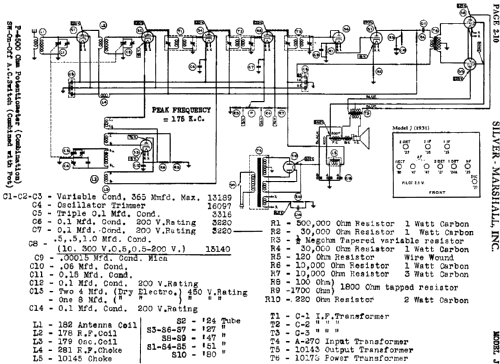

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; Screengrid 1926-1935
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: J - Silver - Marshall; Chicago, IL
- Notes
- Push-pull af output stage.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
