296-S Satin
Silver Mfg. Co.; Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Silver Mfg. Co.; Chicago
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 227792
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: 296-S Satin - Silver Mfg. Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 13 x 8.25 x 5.75 inch / 330 x 210 x 146 mm
- Notes
-
Two bands - 60 to 175 meters, 175 to 550 meters. In satin-wood cabinet. See also the similar Silver model 296-W Diana.
- Net weight (2.2 lb = 1 kg)
- 10 lb 0 oz (10 lb) / 4.540 kg
- Price in first year of sale
- 42.50 $
- Literature/Schematics (3)

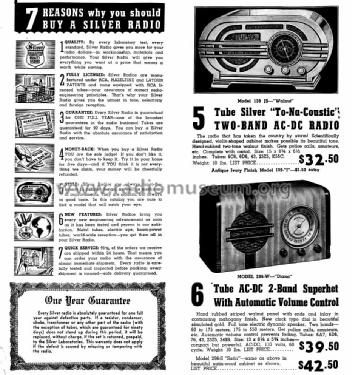

- Silver Folder 1938 for Season 1937/38.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
