• Country
• United States of America (USA)

• Manufacturer / Brand
• Silver Mfg. Co.; Chicago

• Year
• 1936/1937

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 227977

• Number of Tubes
• 5

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: 802 Fiver - Silver Mfg. Co.; Chicago

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 9.5 x 7.75 x 6.5 inch / 241 x 197 x 165 mm

• Notes

• See also the similar Silver model 803 Sixer with 6 tubes.

  See Universal Battery model 802 for schematic

• Net weight (2.2 lb = 1 kg)
• 18 lb 0 oz (18 lb) / 8.172 kg

• Price in first year of sale
• 39.95 $

• Literature/Schematics (3)

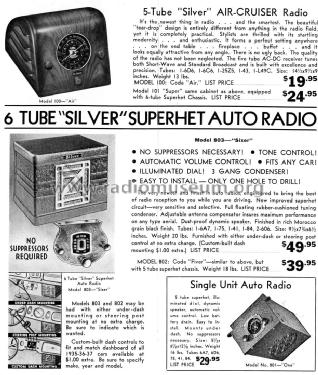

• Silver Folder 1937 for Season 1936/37.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
