• Country
• United States of America (USA)

• Manufacturer / Brand
• Silver - Marshall; Chicago, IL

• Year
• 1928

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 57951

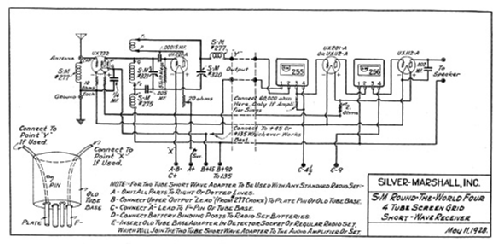

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UX222 UX201A UX201A UX112A

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Kit SM-730 [Round the World Four ] - Silver - Marshall; Chicago, IL

• Shape
• Chassis only or for «building in»

• Notes

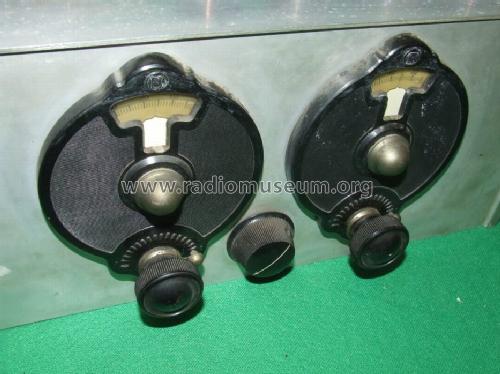

• Two dials (primary tuning control knobs)

• Price in first year of sale
• 51.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Literature/Schematics (1)
• Walter Ashe Radio Co. catalogue for season 1928-1929
