• Country
• Japan

• Manufacturer / Brand
• Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya

• Year
• 1980 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 201113

• • alternative name: Shin-Shirasuna Electric Corp. || Shirasuna Denki Mfg. Co. Ltd. || Shirasuna (Shin) Electric Corp.
  • Brand: Plata (brand)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• 2SC458 2SC458 2SC458 2SC458 2SC458 2SC458 2SC460 2SC460 2SC460 2SC460 2SC461 2SC535 2SD468 2SD468 1N60 1N60 1N60 1N34A 1N34A

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110 - 130; 200-240/ 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RT-290 - Silver Brand - Shin-Shirasuna

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 295 x 210 x 85 mm / 11.6 x 8.3 x 3.3 inch

• Notes

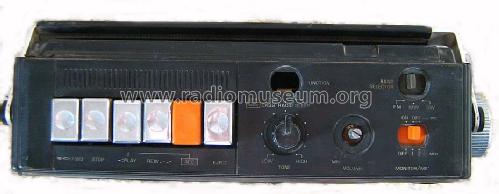

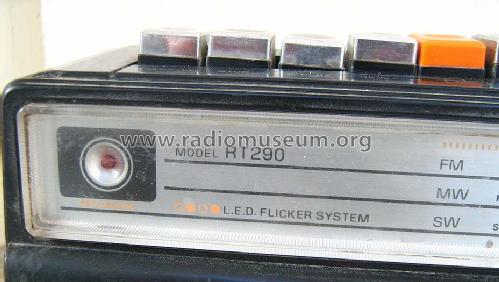

• AM-FM-SW Radio Cassette Corder RT-290.

• Author
• Model page created by Víctor Caselli-Diaconescu. See "Data change" for further contributors.
