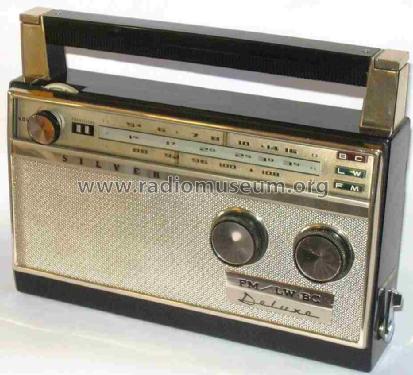

De Luxe 11 Transistor 11TL-510

Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya

Data
Forum
Pictures
Collections

  • Year
  • 1964 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 205760
    • alternative name: Shin-Shirasuna Electric Corp. || Shirasuna Denki Mfg. Co. Ltd. || Shirasuna (Shin) Electric Corp.
    • Brand: Plata (brand)

 Technical Specifications

  • Number of Transistors
  • 11
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 14 cm = 5.5 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: De Luxe 11 Transistor 11TL-510 - Silver Brand - Shin-Shirasuna
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 245 x 183 x 75 mm / 9.6 x 7.2 x 3 inch
  • Notes
  • Getrennte AM- und FM-Abtimmung, für AM einen getrennten Oszillator, der jeweils gewählte Empfangsbereich wird durch ein Minilämpchen angezeigt, ext. Anchluss für AM-und FM-Antenne, Anschlussmöglichkeit für 2 Ohrhörer und ext. Batterie.
  • Net weight (2.2 lb = 1 kg)
  • 1.730 kg / 3 lb 13 oz (3.811 lb)
