714-677 B
Silver - Marshall; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Silver - Marshall; Chicago, IL
- Year
- 1932 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 58011

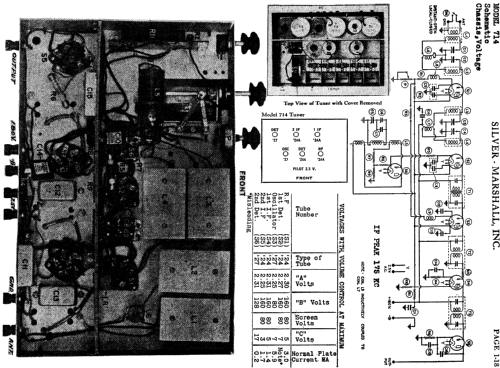

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; Screengrid 1926-1935
- Tuned circuits
- 11 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Metal case
- from Radiomuseum.org
- Model: 714-677 B - Silver - Marshall; Chicago, IL
- Shape
- Chassis only or for «building in»
- Notes
- Combination of the "714" receiver unit and the "677 B" power supply and amplifier unit; 5-gang condenser; push-pull af output stage.
- Price in first year of sale
- 170.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
