• Country
• United States of America (USA)

• Manufacturer / Brand
• Stantex Manufacturing Co., Inc.; Chicago, IL

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 217754

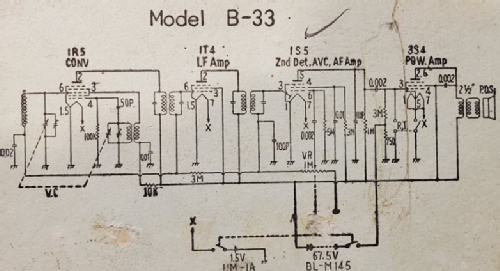

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1T4 1S5 or 1U5SF 3S4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 67,5 & 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Stantex B-33 - Stantex Manufacturing Co., Inc

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Stantex Portable AM Tube Radio Model B-33.
  Leather Case, Earphones jack. Type PD-25 japanese PM speaker.

  Made in Japan

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
