• Country
• Japan

• Manufacturer / Brand
• Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183546

• • alternative name: Shin-Shirasuna Electric Corp. || Shirasuna Denki Mfg. Co. Ltd. || Shirasuna (Shin) Electric Corp.
  • Brand: Plata (brand)

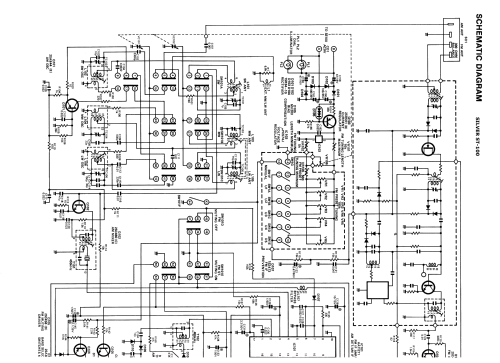

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 44

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo System 100 - Silver Brand - Shin-Shirasuna

• Shape
• Rack

• Dimensions (WHD)
• 466 x 624 x 543 mm / 18.3 x 24.6 x 21.4 inch

• Notes
• Stereo System 100 composed by: Stereo Amplifier, Stereo Cassette Deck and Stereo Record Player model SS100 (all in one unit) and AM-FM Stereo-LW-SW Tuner model ST100. Power output 15W RMS per channel.

• Net weight (2.2 lb = 1 kg)
• 17.8 kg / 39 lb 3.3 oz (39.207 lb)

• Author
• Model page created by Víctor Caselli-Diaconescu. See "Data change" for further contributors.
