- Country
- Japan
- Manufacturer / Brand
- Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya
- Year
- 1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 296905
-
- alternative name: Shin-Shirasuna Electric Corp. || Shirasuna Denki Mfg. Co. Ltd. || Shirasuna (Shin) Electric Corp.
- Brand: Plata (brand)
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 100; 110 / 1.5 & 67.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Power out
- 0.3 W (0.3 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

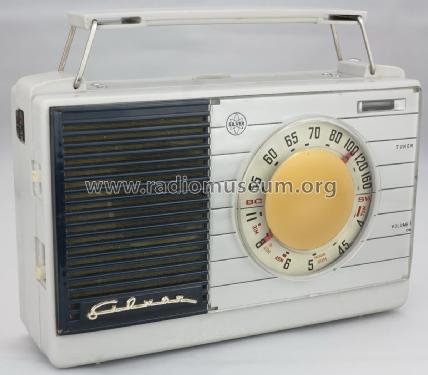

- Model: SW-640 - Silver Brand - Shin-Shirasuna
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 205 x 140 x 67 mm / 8.1 x 5.5 x 2.6 inch
- Notes
-
4-tube AC/DC and battery operated portable radio receiver with tuning indicator.
SW: 3.9...11 MHz.
- Net weight (2.2 lb = 1 kg)
- 1.9 kg / 4 lb 3 oz (4.185 lb)
- Price in first year of sale
- 12,000.00 Yen
- Mentioned in

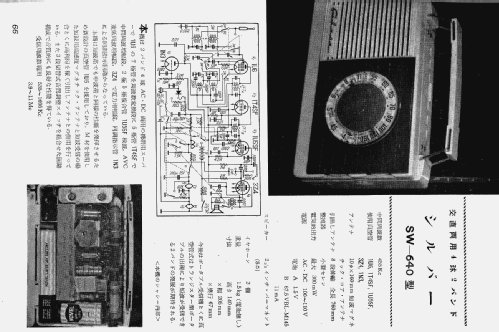

- 無線と実験195708
- Literature/Schematics (1)
- 無線と実験195708
- Literature/Schematics (2)
- 無線と実験195709
- Author
- Model page created by Taili ZHANG. See "Data change" for further contributors.
